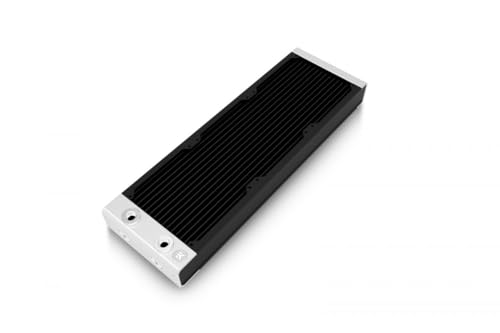

EK EKWB Quantum Surface P360M Radiator, Triple, Black
$128.95
With a thickness of 44mm, the EK-Quantum P Series Surface radiators are the absolute all-rounders for low noise and high performance across the entire fan operational range. Equipped with a total of four G1/4″ threaded connection ports, it provides additional versatility during the loop planning process, while the fifth G1/4″ port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. A total of sixteen 2mm-wide copper tubes across the entire radiator length assure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance, enabling optimal performance even at low-speed fan operation. To maximize cooling performance, a Push/Pull setup can be utilized on any P Series EK-Quantum Surface radiator. Technical and Material Specifications: – High-grade 99.9% copper fins – Copper H90 tubing – Brass H62 end tank chambers – Stainless Steel side plates – Extruded Aluminum Silver anodized end piece covers – Brass nickel-plated extenders and plugs Dimensions: 405 x 130 x 44mm (L x W x H) Weight: 1.6kg FPI: 18 Port threads: 5x G1/4″ Fan compatibility: 120x120x25mm fan Pressure tested: 1bar Enclosed: – EK-Quantum Surface P series radiator – 12x Phillips Slotted M4x30mm for 25mm thick fans – 12x Phillips Slotted M4x5mm for mounting the radiator directly to the case – 6mm steel Allen (Hex) key – 9mm steel Allen (Hex) key Model: 3831109838419
Product Dimensions : 5.91 x 50 x 30.31 inches; 2.65 Pounds
Item model number : 3831109838419
Date First Available : June 2, 2022
Manufacturer : EKWB
ASIN : B0B2X3VV83
With a thickness of 44mm, the eK-Quantum P Series Surface radiators are the absolute all-rounders for low noise and high performance across the entire fan operational range
equipped with a total of five G1/4″ threaded connection ports
A total of sixteen 2mm-wide copper tubes across the entire radiator length assure optimal coolant flow, putting no stress on your cooling loop
High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance.
To maximize cooling performance, a Push/Pull setup can be utilized on any P Series eK-Quantum Surface radiator.
4.5
