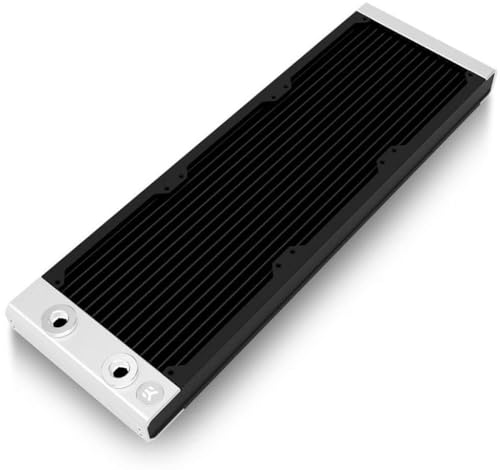

EKWB EK-Quantum Surface S360 Radiator, Triple, Black

Home » EKWB EK-Quantum Surface S360 Radiator, Triple, Black

EKWB EK-Quantum Surface S360 Radiator, Triple, Black

  Posted in Shop

$102.95
With a thickness of only 30mm, the EK-Quantum S Series Surface radiators are ideal for space-constrained cases. Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds. A total of 16 copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop. High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance for optimal performance even at low-speed fan operation. A Push/Pull setup on an S Series EK-Quantum Surface radiator is not something EK would recommend since it will not bring a proportional performance increase. If more cooling power is needed, adding additional radiators is the way to go. Technical and Material Specifications: – High-grade 99.9% copper fins – Copper H90 tubing – Brass H62 end tank chambers – Stainless Steel side plates – Extruded Aluminum Silver anodized end piece covers – Brass nickel-plated extenders and plugs Dimensions: 405 x 130 x 30mm (L x W x H) Weight: 0.95kg FPI: 20 Port threads: 2x G1/4″ Fan compatibility: 120x120x25mm fan Pressure tested: 1bar Enclosed: – EK-Quantum Surface S series radiator – 12x Phillips Slotted M4x30mm for 25mm thick fans – 12x Phillips Slotted M4x5mm for mounting the radiator directly to the case – 6mm steel Allen (Hex) key – 9mm steel Allen (Hex) key Model: 3831109838198
Product Dimensions ‏ : ‎ 5.12 x 15.94 x 1.18 inches; 2.65 Pounds
Item model number ‏ : ‎ 3831109838198
Date First Available ‏ : ‎ June 2, 2022
Manufacturer ‏ : ‎ EKWB
ASIN ‏ : ‎ B0B3KV8PM3

With a thickness of only 30mm, the eK-Quantum S Series Surface radiators are ideal for space-constrained cases.
Despite the reduced thickness, they deliver exceptional performance at very low and medium fan speeds.
A total of sixteen copper 2mm wide tubes across the entire length of the radiator assure optimal coolant flow putting no stress on your cooling loop.
High-grade non-louvered copper fins with 20 FPI density provide the best balance between thermal transfer and air resistance.
The Quantum Surface line is made to be modular and easily disassembled.
