$609.99

Product Description

Jetson Orin Nano 4GB/8GB 34/67TOPS SUPER Developer Kit

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. 1 Merchant Video

Please note: If you purchased the NVIDIA Jetson Orin Nano 8GB Super Kit, you will need to flash the bootloader provided by Yahboom after receiving the product in order to use it with the image file included with the SSD. If you want to obtain the information, please contact Yahboom

Jetson Orin Nano/NX kit supports SUPER upgrade and Jetpack 6.2 version!

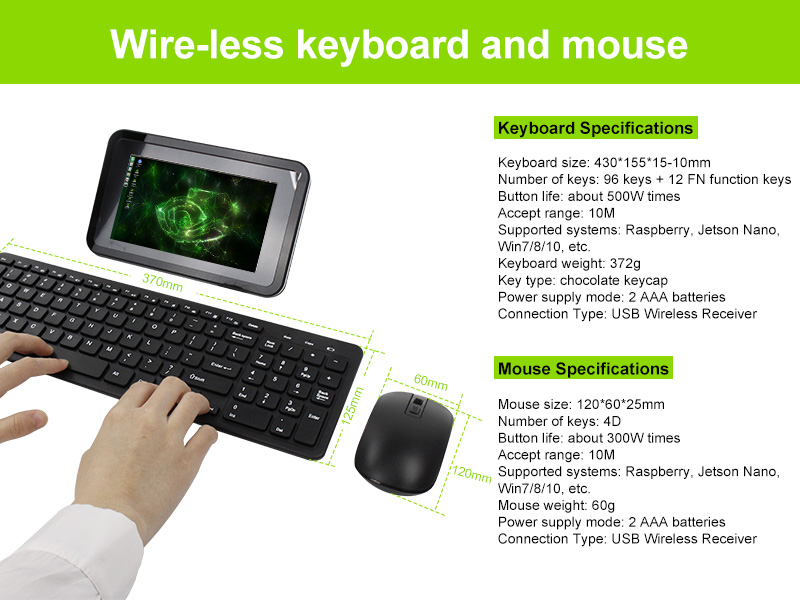

Mouse and Keyboard

It can be used on RaspberryPi, Jetson NANO and PC by plugging in the USB interface without installing any driver. Users can enjoy a strong connection without delay. It adopt 2.4G wireless communication technology, range up to 10 meters. Reasonable detail design can bring a better experience to users, such as 6°tilt angle between keyboard and desktop, storage compartment for USB adapter, non-slip rubber pad on the bottom of the mouse, etc. 15.6 inch touch screen

Screen with 1920*1080 HD resolution. It has a 178°multi-view IPS panel, with dual-channel black magnetic speaker, supports precise ten-point touch. The side of the display is attached with 3.5mm audio output, USB and Type-c interface that supports audio and video transmission. Beyond that, it also possess a HDMI interface, which can be used with Raspberry Pi, Jetson NANO, or can be connected to devices with HDMI output such as game consoles, handles, and PC. Case Cesigned by Yahboom for Jetson Orin

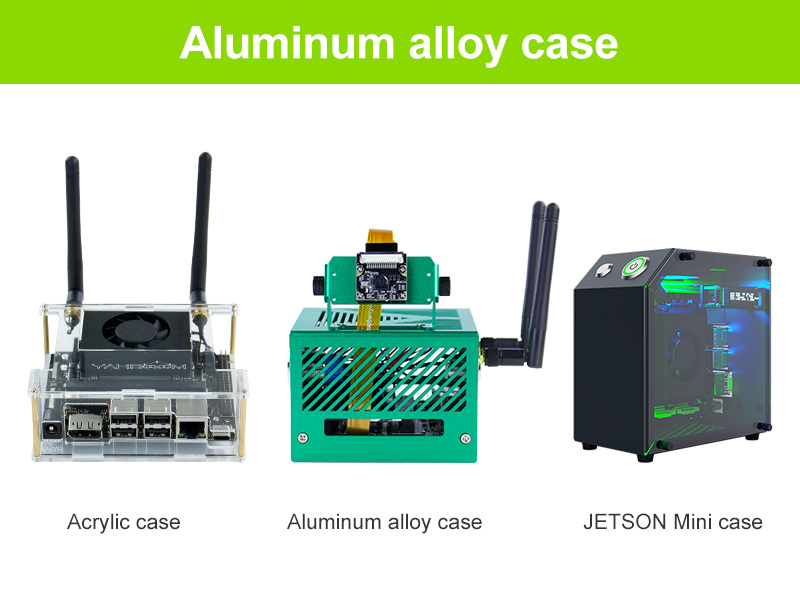

The Jetson Orin Nano developer kit can use acrylic and aluminum alloy case. Both cases support the installation of fixed dual-channel cameras and dual antennas, and various interface holes are reserved to effectively protect the main board without affecting any of performance. Yahboom packaging list

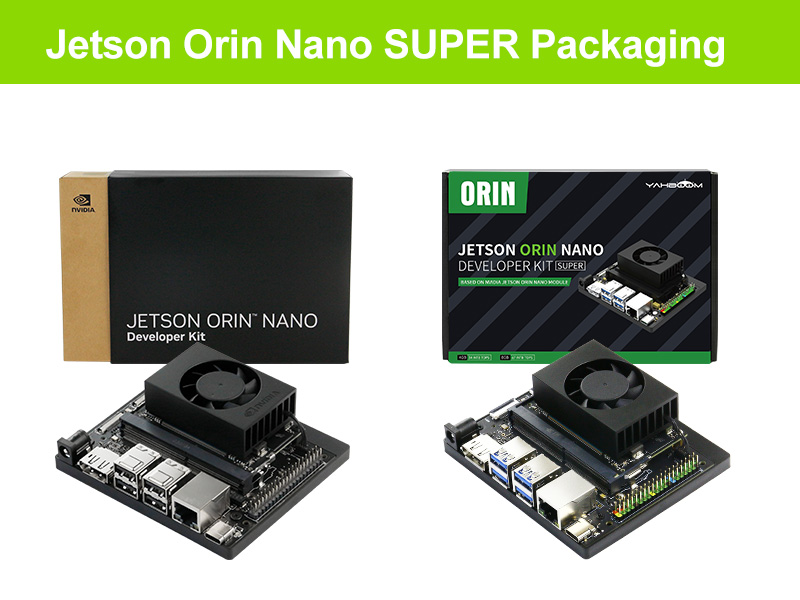

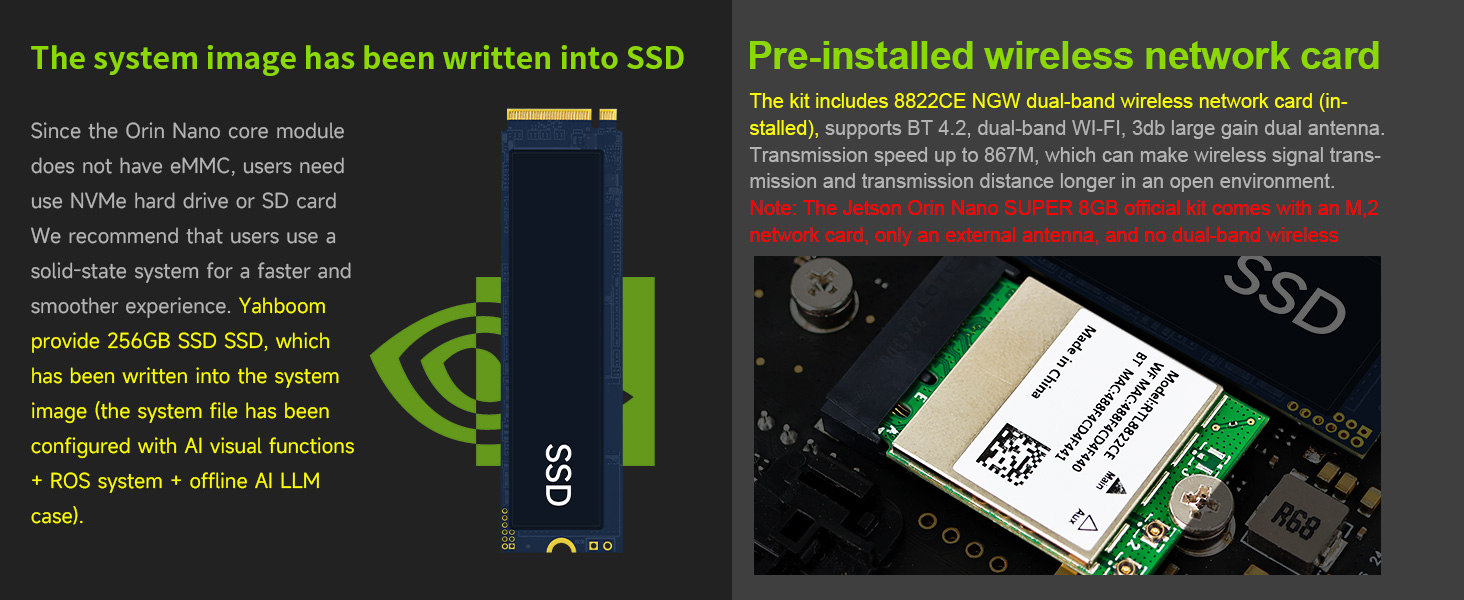

Developer Kit: Orin Nano 4GB/8GB*1 (core module and carrier board installed), power adapter*1, antenna*2, wireless network card*1 (installed), SSD*1;Basic Kit: Developer Kit+DP to HDMI cable*1, Type-C cable*1, acrylic case*1; Advanced Kit: Basic Kit+IMX219-77° Camera*1, Camera case*1; Mini PC Kit: Basic Kit-Acrylic case+Cube Case+USB Camera; Ultimate Kit: Mini PC Kit+15.6inch Display+Wireless Keyboard+Mouse Set. Brand New System Image

The JETSON system based on Ubuntu22.04 provides a complete desktop Linux environment with accelerated graphics and supports NVIDI-A CUDA12.6, TensorRT 10.7.0, CuDNN9.6.0, OpenCV 4.10.0 and other libraries.

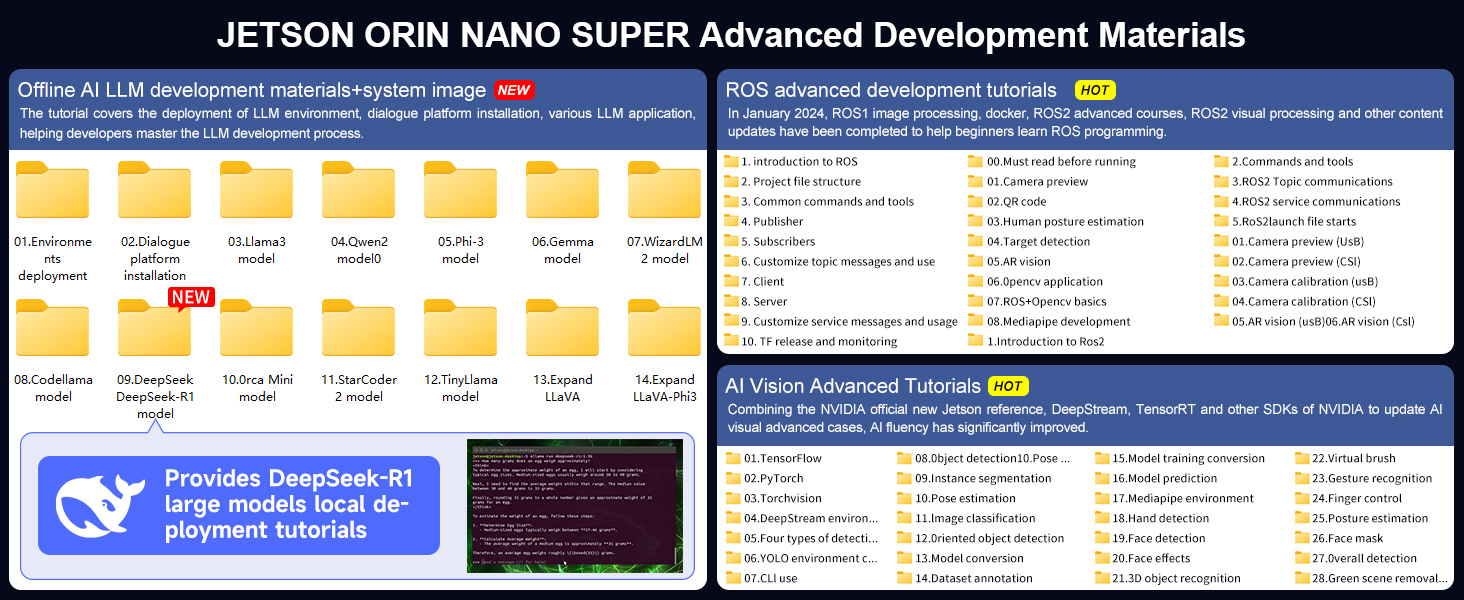

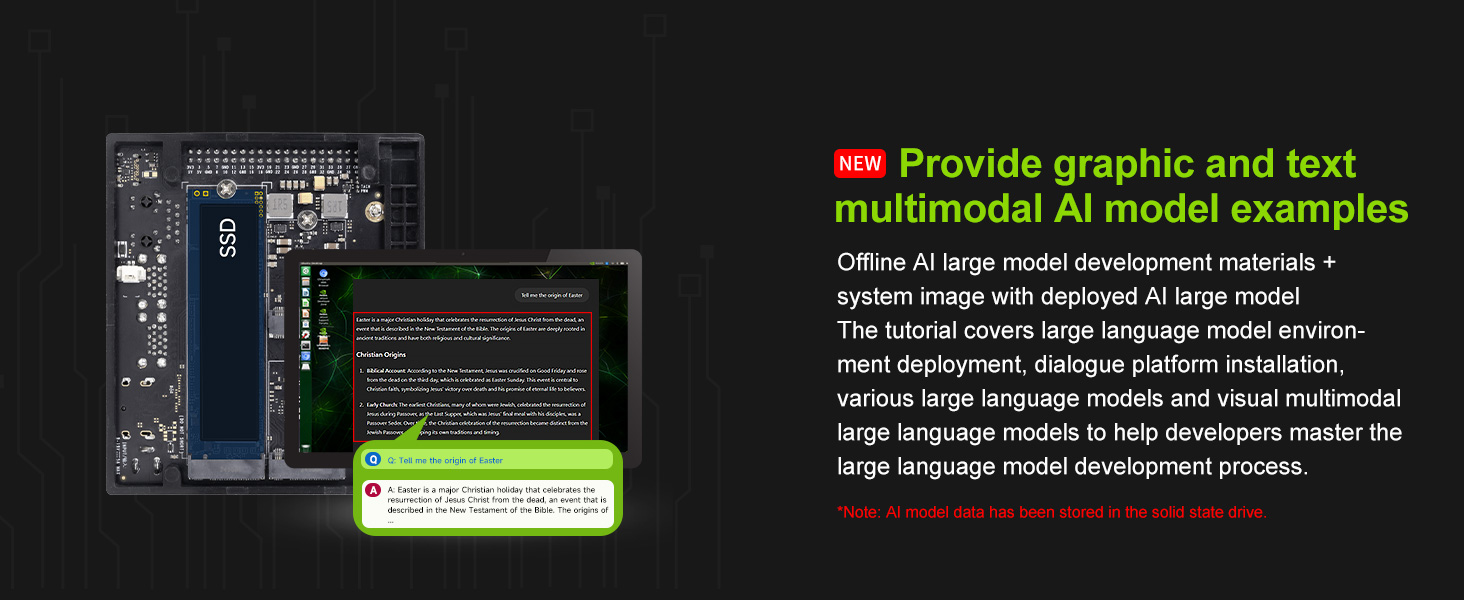

1 AI large model data

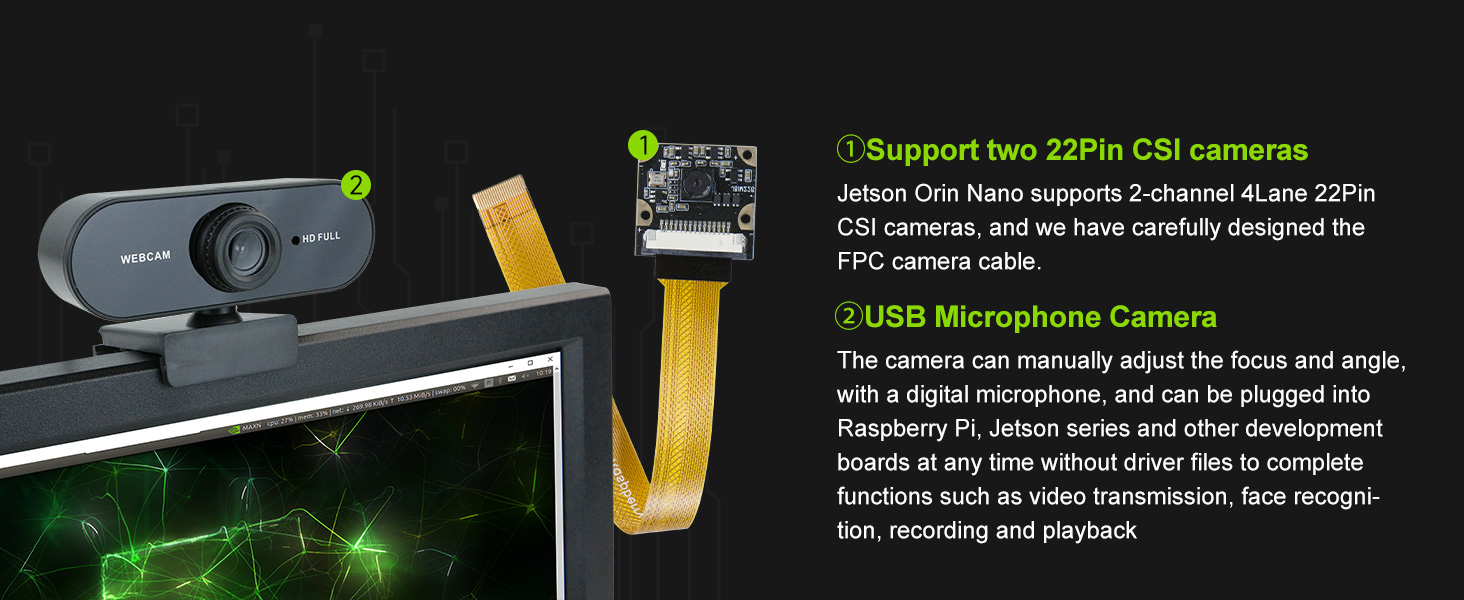

2 IMX219 77° Camera

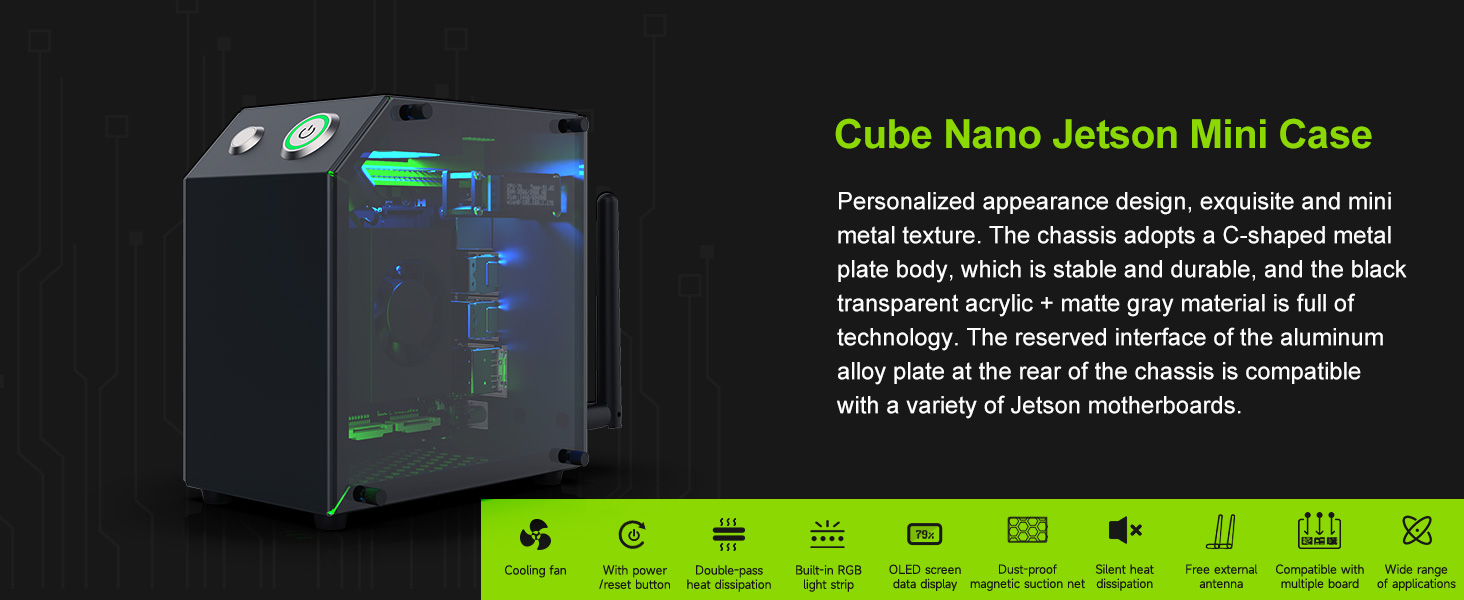

3 Jetson Mini Case

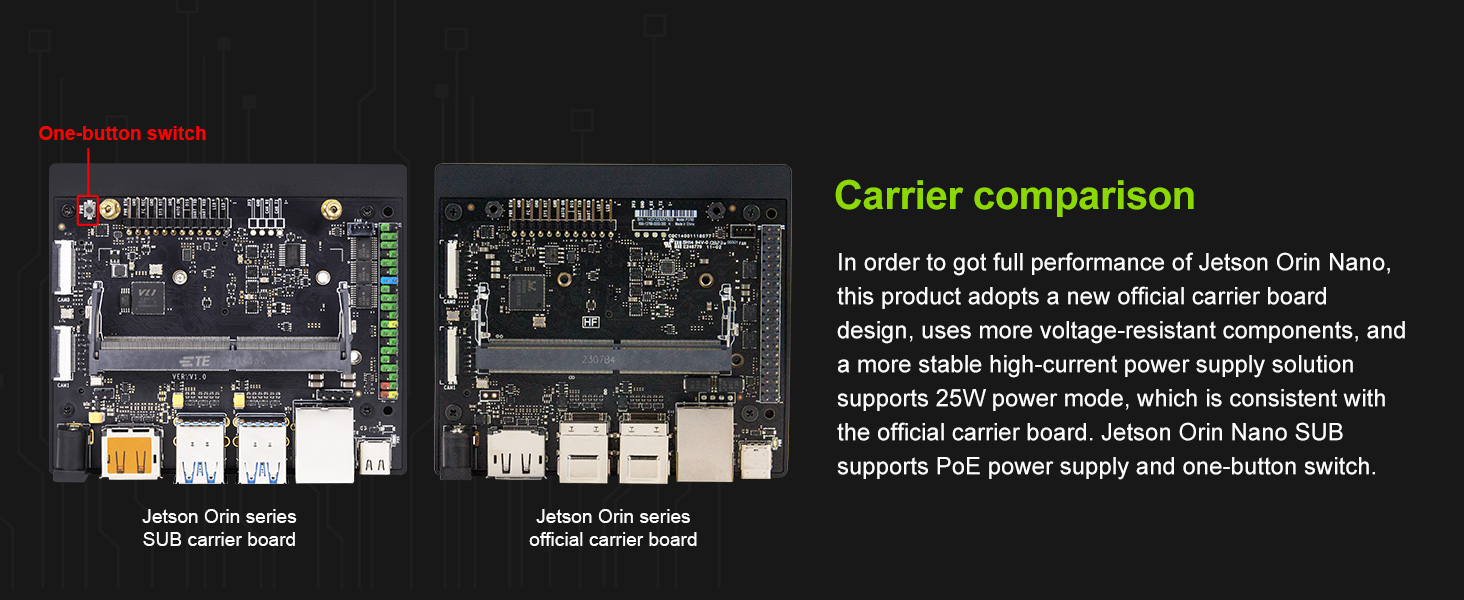

4 Compatible Carrier Board

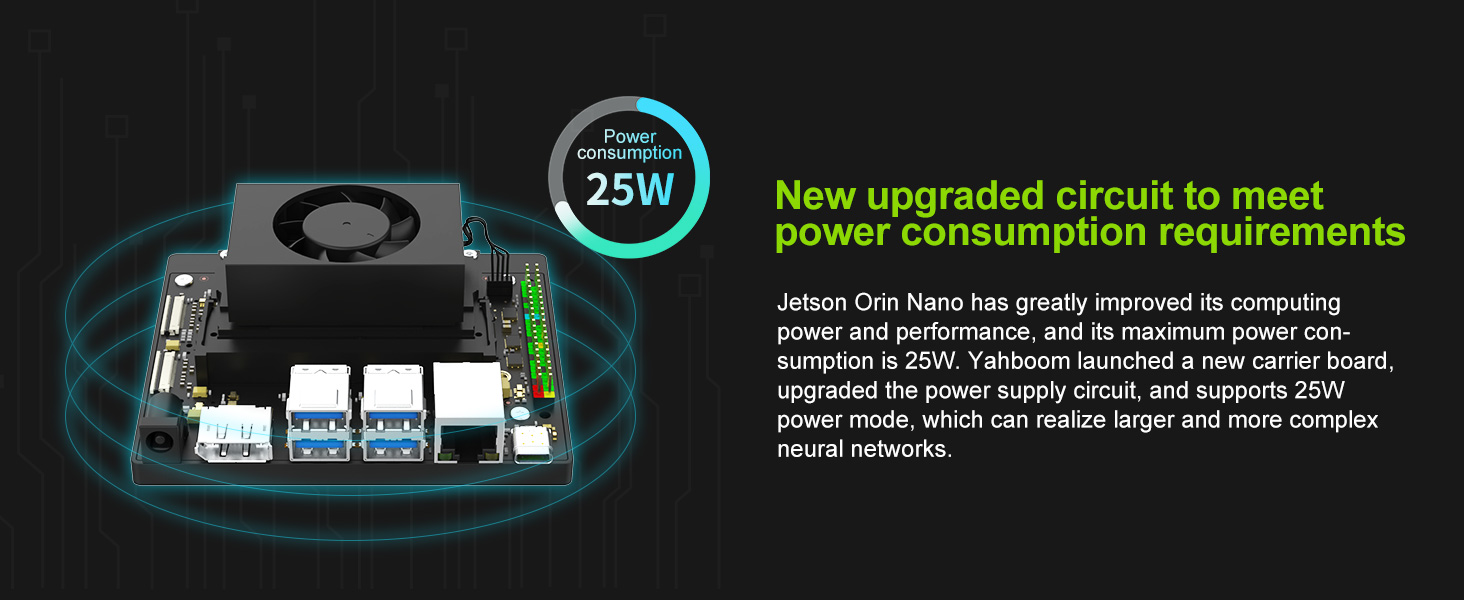

5 Circuit Upgrade

AI high-performance computer、Provide Information

Can the Orin l bought before be upgraded to SUPER KIT?

Yes, We provide tutorials on how to upgrade Jetson Orin Nano/NX o SUPER Kit. Please contact Yahboom or obtain it on the documentation website

No log appears when configuring UART serial connection?

Remove the jumper cap before starting the system. You need to short-circuit the serial port pins under the core board to output the serial port log. The 40Pin pin cannot output the log.

I encountered difficulties during use, how can l ask for help?

We provide after-sales technical services, please contact Yahboom for question support.

Why is the NVIDIA Jetson Orin Nano not upgraded when I received it?

Yes, after receiving the NVIDIA Orin Nano, you need to upgrade it according to the documentation before you can use it with the SSD image.

Yahboom Provides A Variety of N-VIDIA Development Kit & Peripheral AI Robot Kit

Add to Cart

Customer Reviews

3.3 out of 5 stars 7

4.7 out of 5 stars 10

2.6 out of 5 stars 4

3.9 out of 5 stars 8

Price

$588.99$588.99

—

—

—

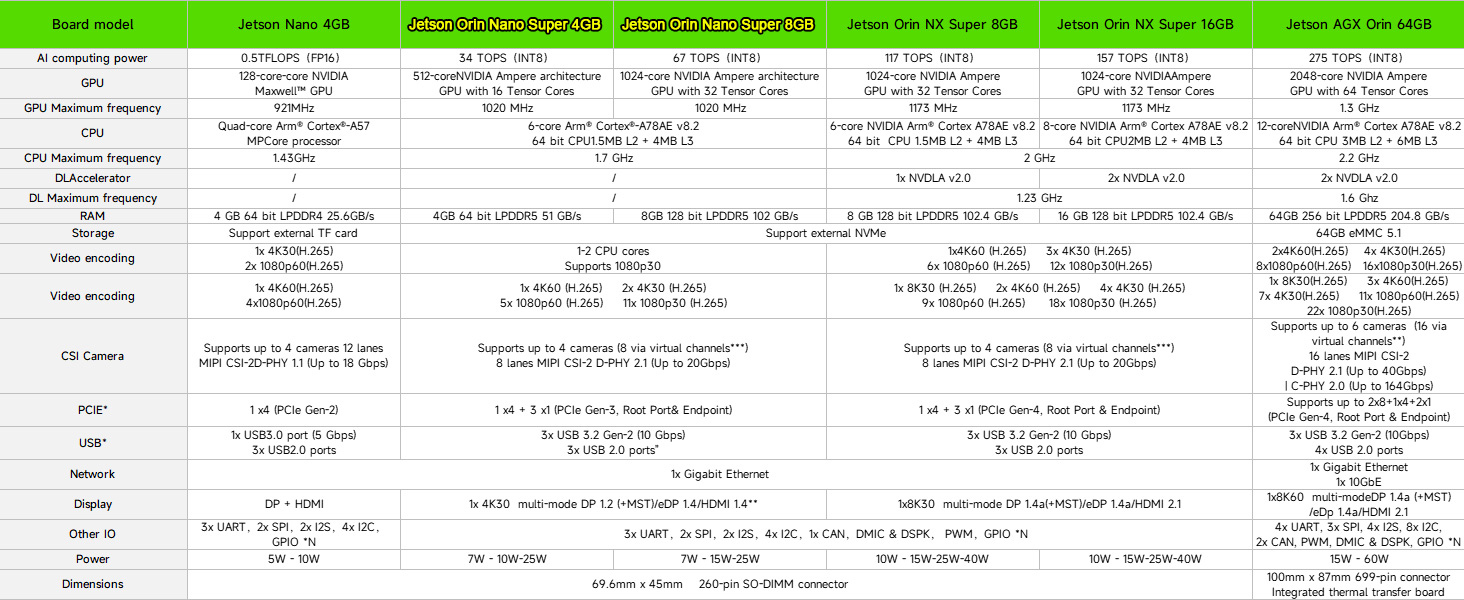

Computing power

34/67 TOPS

117/157 TOPS

473GFLOPS

/

CPU

6-core Arm 64-bit CPU

8-core Arm 64-bit CPU

4-core ARM A57 1.43 GHZ

4-core Cortex-A76(ARM v8)

GPU

512 cores/1024 cores

1024 cores

128 cores Maxwell

800 MHz VideoCore Vll

RAM

4GB/8GB

8GB/16GB

4GB

4GB/8GB

Storage

256GB SSD

256GB SSD

16GB EMMC

Micro SD

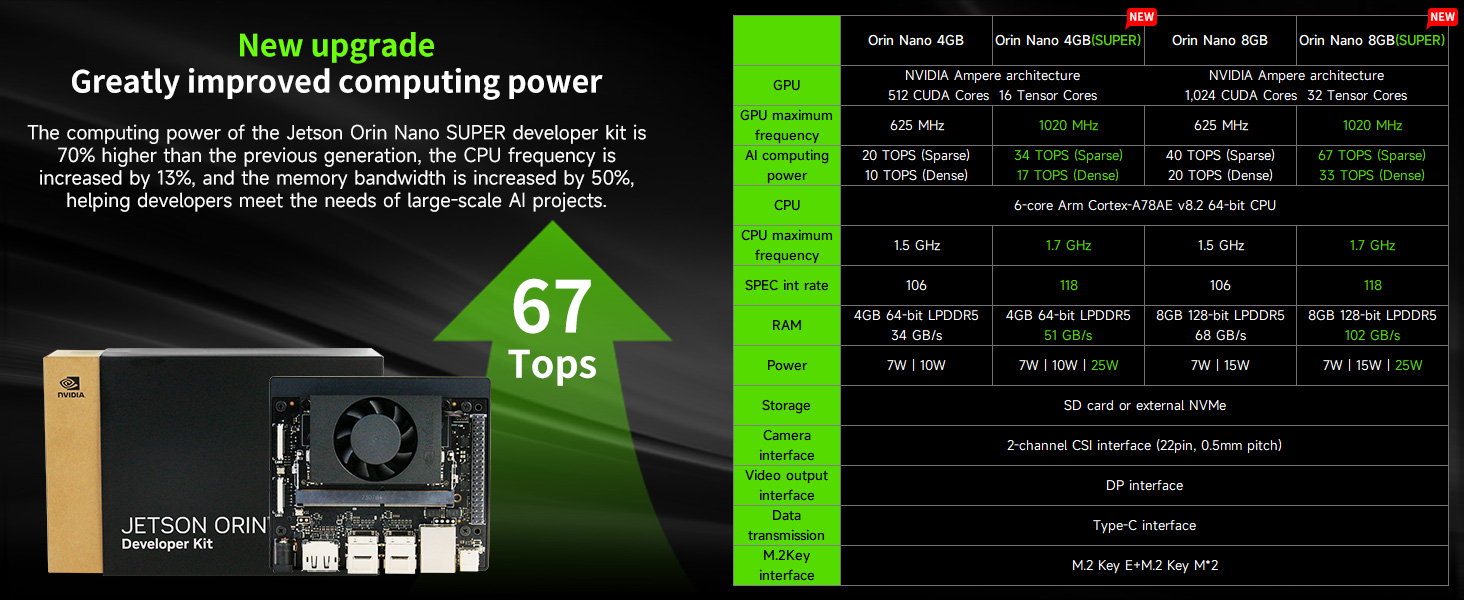

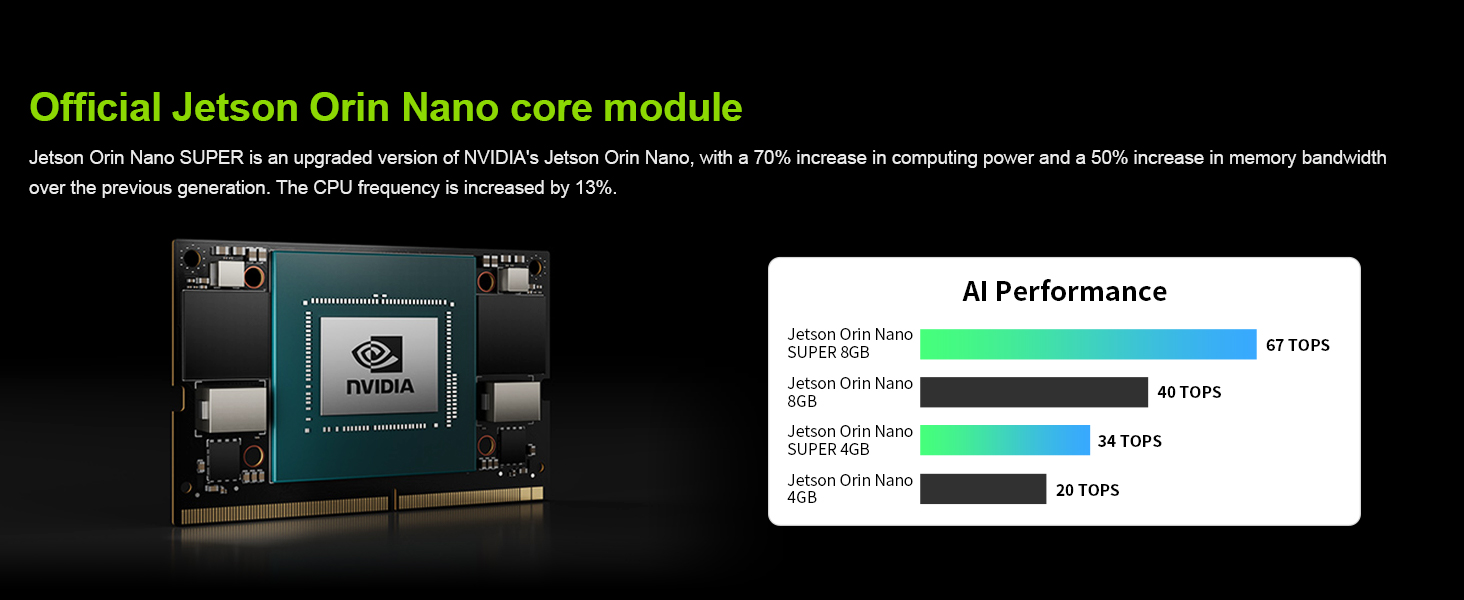

The Jetson Orin Nano SUPER developer kit consists of NVIDI-A’s Jetson Orin Nano core module and Jetson Orin Nano carrier board. Suitable for multiple concurrent AI inference pipelines, it can also connect multiple sensors through high-speed interfaces, providing an ideal solution for new-age robotics.

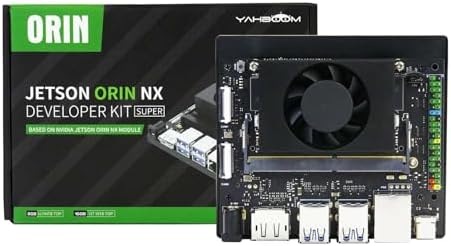

The Jetson Orin NX module is extremely small, but the 16GB version delivers up to 157 TOPS of AI performance and is configurable from 10 watts to 40 watts. This module delivers up to 3x the performance of Jetson AGX Xavier and 5x the performance of Jetson Xavier NX.
Many AI applications face common needs: classification, object detection, language translation, text-to-speech, recommendation engine, sentiment analysis, etc. Pretrained models in the NGC catalog are performance-optimized and ready-to-tune with the NVIDIA TAO tool suite and customer datasets, saving time and cost in developing production-grade AI software.
NVI-DIA software platforms, including Isaac for robotics, Riva for AI voice and Metropolis for video analytics, accelerate development of industry-specific applications
【Packing list】Basic kit: Jetson Orin Nano SUB development board*1 (core module and carrier board installed), power adapter*1, antenna*2, wireless network card*1 (installed), SSD*1, DP to HDMI cable*1, Type-C cable*1, acrylic case*1, advanced kit: basic kit + IMX219-77° camera*1, camera case*1
