U9 ViewHD Newest Ultra HD 4K HDMI Audio Extractor 4K@60Hz, HDR, Dolby Vision | 3.5mm Headphone Stereo Output | Toslink Optical Audio DD+ Output | HDCP 2.2 | HDMI 2.0 | 18Gpbs | | Model: VHD-UHAE

$27.95

Product Description

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

—

3.7 out of 5 stars 110

4.1 out of 5 stars 30

3.7 out of 5 stars 110

3.7 out of 5 stars 28

4.3 out of 5 stars 225

Price

— no data
$48.95$48.95
— no data
$48.95$48.95 $37.95$37.95
— no data

HDMI Version
HDMI v2.1 8K@60Hz HDMI v2.0b, HDCP 2.2 and CEC pass-though, 4K@60Hz, HDR, Dolbi Vision, 3D HDMI v2.0b, HDCP 2.2 and CEC pass-though, 4K@60Hz, HDR, Dolbi Vision, 3D, ARC HDMI v2.0b, HDCP 2.2 and CEC pass-though, 4K@60Hz, HDR, Dolbi Vision, 3D, ARC HDMI 2.0b, HDCP 2.3; best for HDMI audio receiver application with eARC TV HDMI v2.0b, HDCP 2.2, 4K@60Hz, HDR, Dolbi Vision, 3D

Analog Stereo Audio Output
no data
3.5mm RCA L/R 3.5mm no data
3.5mm

Toslink Optical Audio Output
no data

✓

✓

✓
no data

✓

Dedicated HDMI Audio Output
no data
no data
no data
For HDMI v1.3 & latest AVR
✓

✓

Audio EDID Management
no data

✓

✓

✓

✓

✓

Extracted Audio Formats
no data
Up to DD/DTS 5.1CH and DD+ Up to DD/DTS 5.1CH and DD+ All Audio formats supported by HDMI 2.0b Receiver All Audio formats supported by HDMI 2.0b Receiver All Audio formats supported by HDMI 2.0b Receiver

Audio Output Compatibility
no data
DD/DTS 5.1CH, DD+ Receiver / Soundbar DD/DTS 5.1CH, DD+ Receiver / Soundbar Special EDID settings to fully utilize HDMI v1.3, v1.4, v2.0 Audio Receivers All HDMI Audio Receiver / Soundbar Special EDID settings to fully utilize HDMI v1.3, v1.4, v2.0 Audio and Video Receivers

Audio Return Channel / ARC
no data
no data
ARC Audio @ Optical output ARC Audio @ Optical & HDMI Out2 ports at the same time ARC / eARC Audio from HDMI port no data

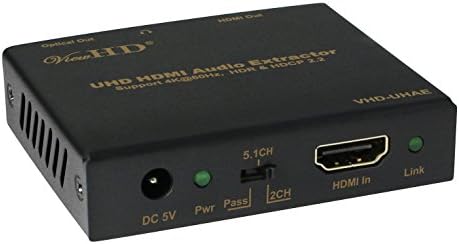

U9 ViewHD 4K HDMI Input to 3.5mm Analog and Optical Audio Extractor, Model: VHD-UHAE

HDMI 2.0b 4K@60Hz 18Gbps 4:4:4 HDMI to Optical Audio Extractor, MODEL: VHD-UHAE

This is the latest true HDMI 2.0b 18Gbps YUV 4:4:4 4K@60Hz HDMI to Optical Audio Extractor with integrated 2CH digital to stereo analog audio converter, compact size, and powerful performance. It is not a cheaply made 4:2:2 or 4:2:0 4K60Hz knockoff, a lot of lower grade 4K@30 products can also do 4K@60, but they can’t support full HDMI 2.0 4K@60Hz features.

Support all HDMI v2.0b video audio formats (pass-through) from HDMI input to HDMI output. Please use 18Gbps HDMI cable under 15ft for guaranteed performanceSupport HDCP 2.2 and CEC pass-through; does not support ARC (Please check model UAEP for ARC support)Three audio EDID settings: 2CH for 35mm stereo analog audio, 5.1CH for the optical output up to Dolbi Digital / DD+ Soundbar; Pass for TV’s speaker audio application.Ideal for Dolbi Digital / DTS 5.1 and Dolbi Digital Plus receiver and Soundbar application; if there is no sound or broken sound for DD+ audio, please upgrade to a premium quality optical cable that can support DD+; if your soundbar or receiver doesn’t support DD+, but your HDMI source can support DD+, please disable DD+ from the HDMI source to avoid no audio problem.The analog stereo 3.5mm output has a 2watt rated power amplifier to deliver sufficient volume to headphones, make sure the HDMI source sends audio in stereo for the 3.5mm output to work.Compact size, light-weight, strong, and solid full metal jacket constructionPackage Includes: VHD-UHAE HDMI Audio Extractor, 100V-240V AC to 5V1A DC power adapter with US plug, and user manual

U9 ViewHD HDMI Extractor Model: UAEP and Application Details

HDMI Version Latest HDMI v2.0b, HDCP 2.2, 18Gbps, 4:4:4, HDMI to Optical Audio extractor, support the full technical specifications of HDMI v2.0b, no compromise. HDMI Input / Output One HDMI Input (connected to an HDMI source such as a Blu-ray player) to One HDMI Output (connected to TV), the HDMI output signal is always identical to HDMI input signal, no degradation or modification; HDCP and CEC pass-through. Support all audio formats. HDMI Video Details: Support all HDMI 2.0b, 4K@60Hz/50Hz NTSC and PAL displays, and HDR & Dolbi Vision video formats. Please use 18Gbps HDMI cable under 15ft for reliable performance. 3.5mm Stereo Audio Output When the HDMI input audio format is stereo, the RCA L/R output will have analog stereo audio output. The volume is strong for headphone application. Please set the 2CH audio EDID selection 3.5mm audio application; if no sound, make sure the HDMI source send audio in stereo format. The optical output and HDMI output have the same stereo audio signal at the same time. The 3.5mm output has no sound if the incoming HDMI audio format is higher than 2CH / stereo. Toslink / Optical Audio Output Supports 2CH, Dolbi Digital / DTS 5.1CH and Dolbi Digital Plus. Use the 5.1CH EDID selection to get DD/DTS 5.1CH or DD+ audio . Troubleshooting Note: the receiver must support DD/DTS 5.1CH or DD+ audio format to use this setting. If the receiver does not support DD+, make sure to disable DD+ audio output option in the HDMI source to avoid no audio problem. If your receiver supports DD+, but no sound or broken sound, please upgrade to an optical audio cable that can support DD+.

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 2.91 x 2.4 x 0.67 inches; 8.16 ounces
Item model number ‏ : ‎ VHD-UHAE
Date First Available ‏ : ‎ March 21, 2017
Manufacturer ‏ : ‎ U9LTD
ASIN ‏ : ‎ B06XRT9VGL
Country of Origin ‏ : ‎ China

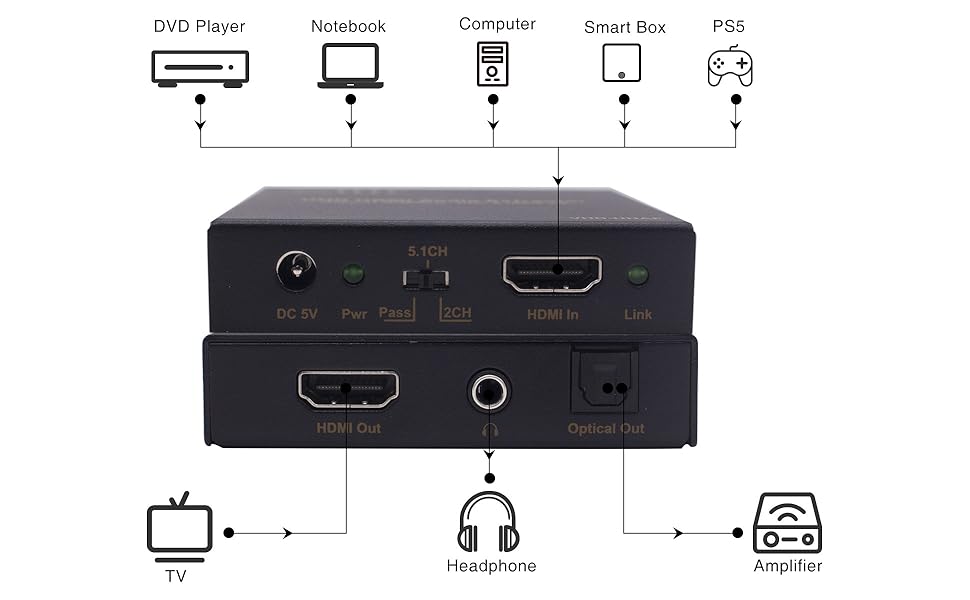

Model: VHD-UHAE is HDMI 2.0b, 18Gpbs, HDCP 2.2, one HDMI input to one HDMI output + Toslink Optical Audio output + 3 5mm stereo headphone jack output.
Support universal video resolutions up to 4Kx2K@60Hz (NTSC) or 50Hz (PAL), YUV4:4:4, RGB & YCbCr 4:4:4, Color Depth 10bit & 12bit, HDR, Dolby Vision. Please use certified 18Gbps HDMI cable under 15ft for guaranteed performance.
Extracts HDMI Audio signal (2CH PCM, Bitstream DTS & Dolby Digital 5.1Ch, and Dolby Digital Plus) to Toslink optical output; extracts 2CH PCM/LPCM to the 3.5mm headphone jack analog output; all higher HDMI audio signals will be available only from the HDMI output / pass through.
Model: VHD-UHAE does not support ARC (Audio Return Channel), for ARC application, please check the latest model “UAEP” or “VHD-UHAE2”.
Supports HDMI high bit rate (HBR) Audio pass through Audio sample rates up to 192kHz. 10bits HDR (High Dynamic Range) & Dolby Vision Pass-Through; Support CEC Bypass; If you are interested in this model please also check UHD3X1A and VHD-UHD4X1A models, they have a switch on the front for improved flexibility
Three audio EDID settings: Use 2CH setting for stereo 3.5mm headphone output; 5.1CH setting for optical audio output to 5.1CH surround receiver; use Pass setting for HDMI TV speaker audio.
Lifetime free technical support from u9ltd and ViewHD one year replacement warranty
Package Includes: VHD-UHAE HDMI Audio Extractor, User Manual, 100V-240V AC to 5V DC Power Adapter
Does not support VRR (Variable Refresh Rate) and ALLM(Auto Low Latency Mode), which are parts of HDMI 2.1. This model is HDMI 2.0b.
