$589.99

Product Description

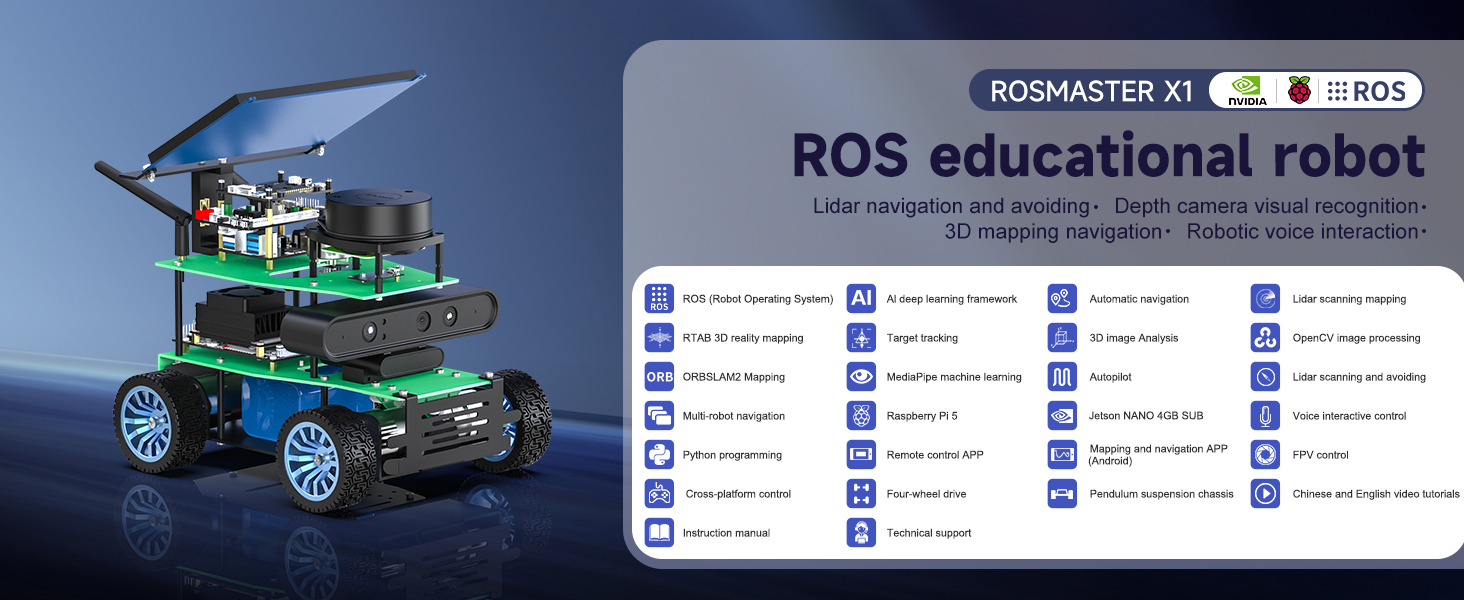

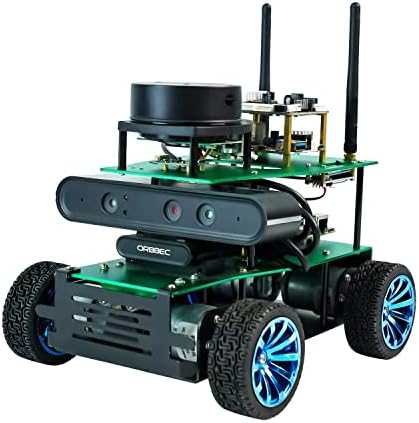

Rosmaster X1 New compatible with Raspberry Pi 5-8GB

Important Function、AI LLM Model、RVIZ Simulation、APP Control

Accessories Introduction and Parameters

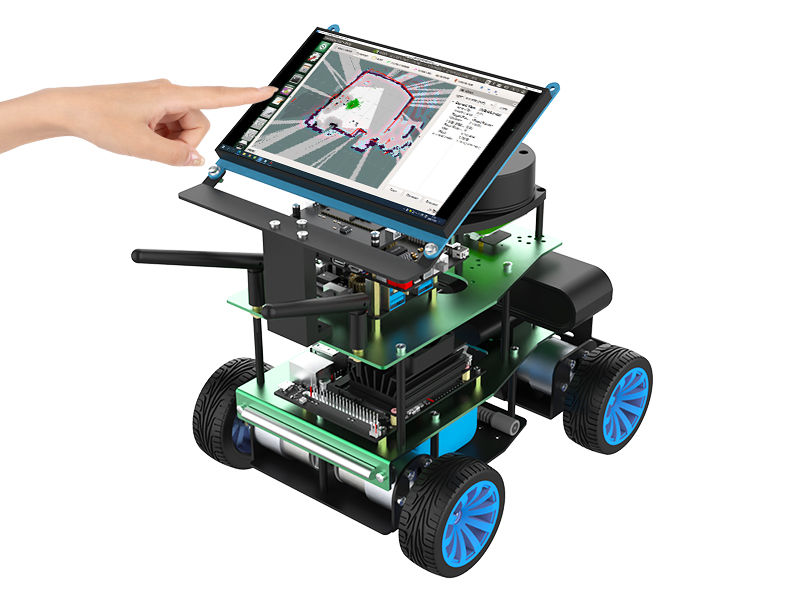

High-definition touch 7-inch screen

7-inch touch screen allows you to debug the robot anytime, anywhere. Through the touch screen, you can directly open ROS, install software, configure or connect to WiFi, which is as convenient as operating a computer.

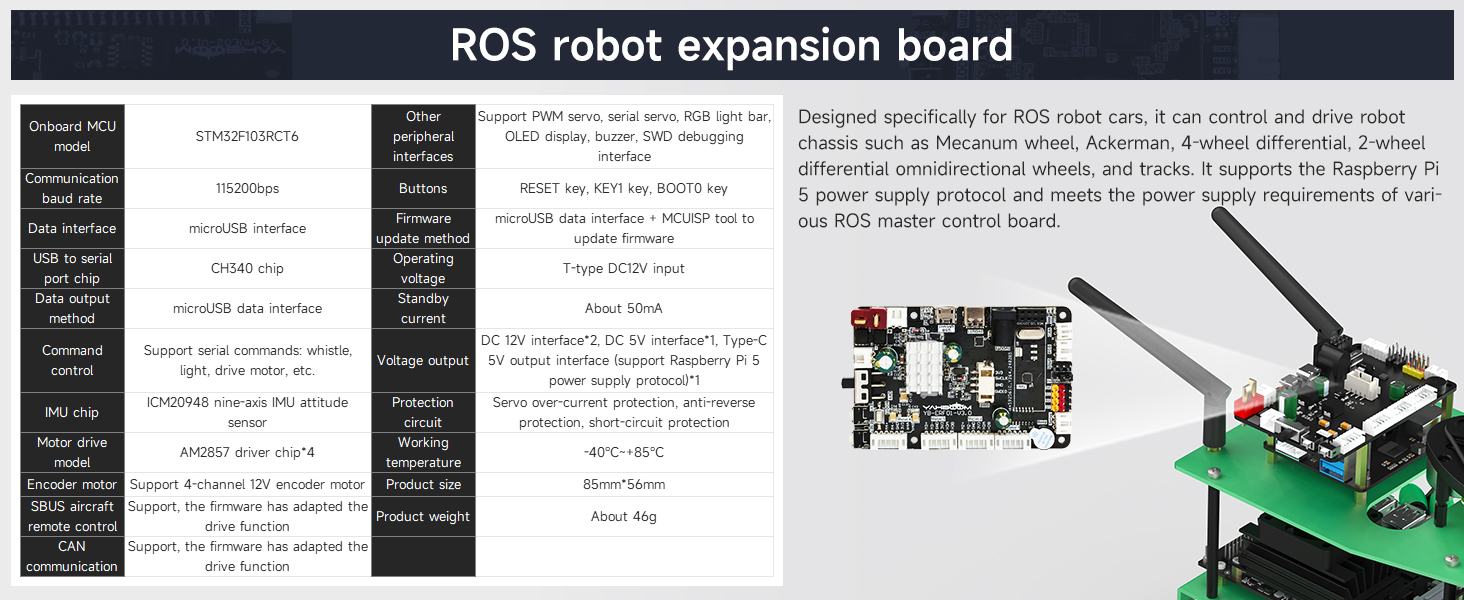

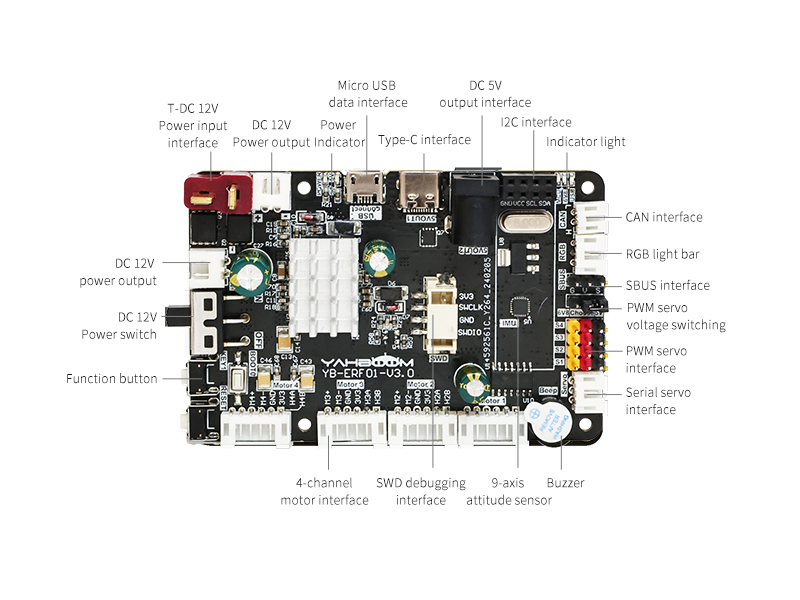

ROS robot expansion board 3.0

It can control and drive the robot chassis such as Mecanum wheel, Ackerman, 4-wheel differential, 2-wheel differential, omnidirectional wheel, and crawler. The ROS master control can be controlled through the microUSB serial port and CAN bus interface. On-board MPU9250 9-axis IMU can obtain the robot attitude information in real time; it has 5V/7.4V PWM servo and serial bus servo drive interface, which is suitable for a variety of common robotic arms.

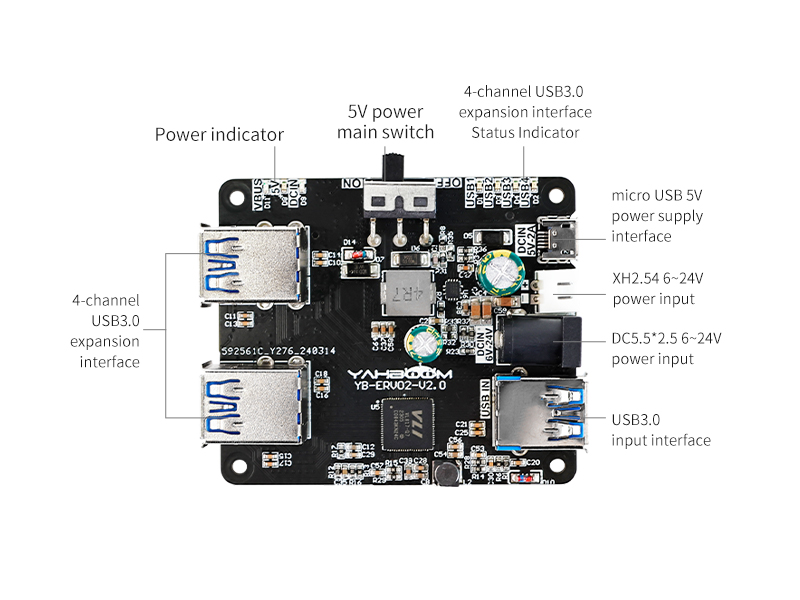

USB HUB expansion board 2.0

It is designed for makers, geeks and robotics developers, and is compatible with Raspberry Pi, Jetson NANO series development boards. On-board VL817 HUB chip, 4 output USB3.0 ports, micro USB, DC5.5*2.5 and XH2.54 three power supply interfaces, support external wide voltage power supply, the maximum total current can support 5A. Compared with ordinary USB HUB devices in the market, it can provide more stable data transmission and avoid transmission failure due to insufficient current.

Voice interaction module

This module has the characteristics of high performance, strong computing power, low power consumption, and abundant resources. It can be used with ROSMASTER robot to complete the related functions of voice interaction, making the robot more intelligent. The module supports a variety of neural networks and vector operations, and has functions such as far-field sound pickup, echo cancellation voice broadcast, offline commands, and environmental noise reduction.

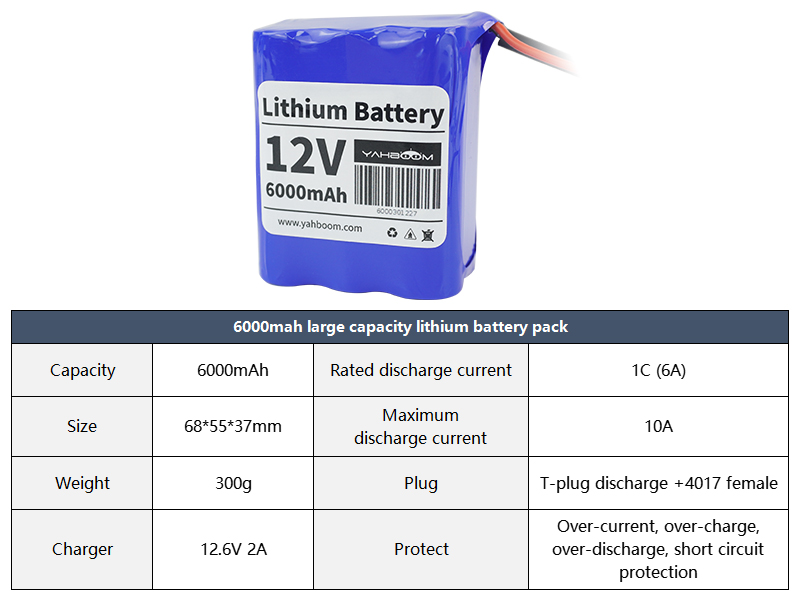

6000mah large capacity lithium battery pack

The ROSMASTER X1 car is equipped with a large-capacity lithium battery pack, has longer battery life.

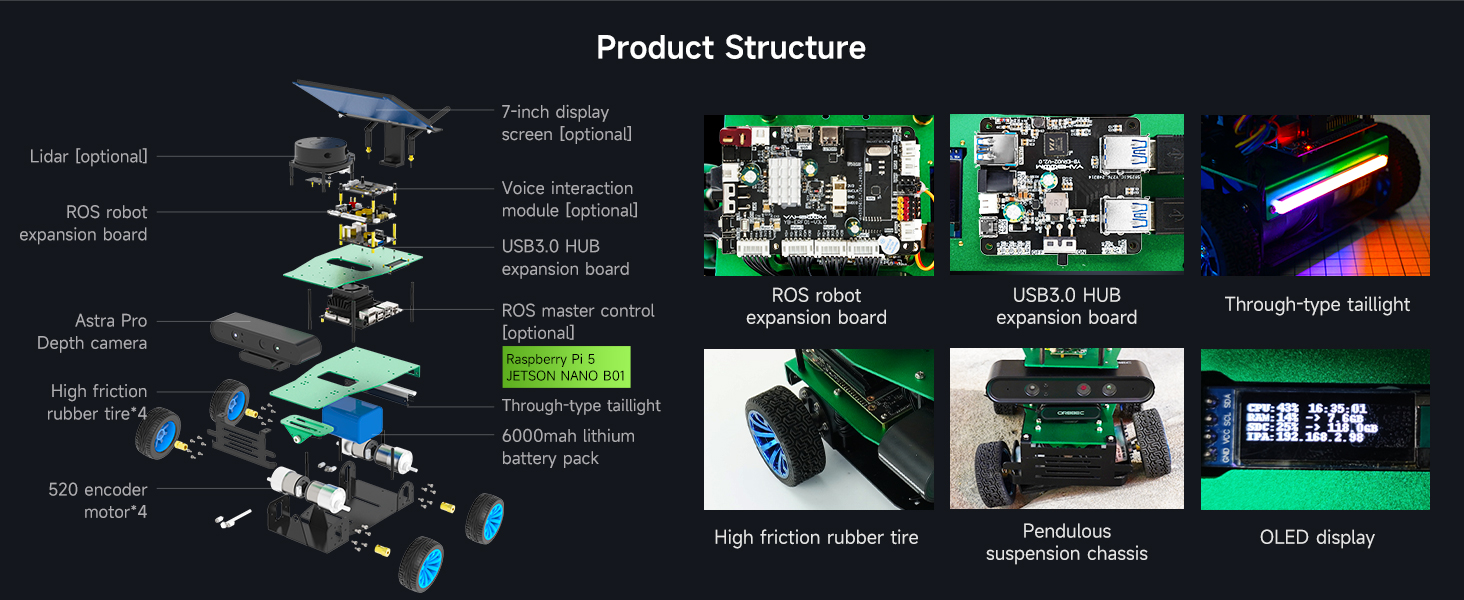

Hardware Parameter Analysis

Intuitive Video Display

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

hero-video Merchant Video

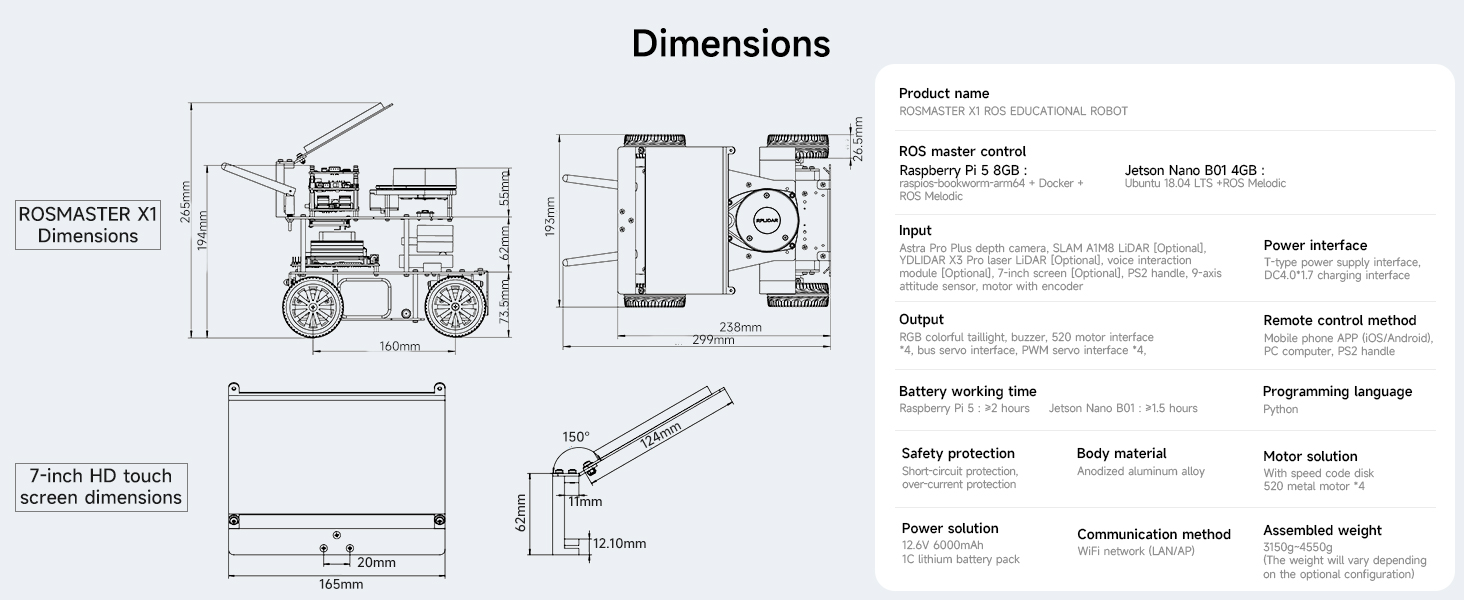

Structural Distribution, Size Parameters, Data Analysis

Note: Deepseek data is only available for development boards, not for the Robot series！

Yahboom ROS ROBOT Selection

Add to Cart

Customer Reviews

5.0 out of 5 stars 1

—

3.6 out of 5 stars 8

—

4.5 out of 5 stars 8

3.7 out of 5 stars 21

3.8 out of 5 stars 39

Price

$589.99$589.99
—
$999.00$999.00
—
$899.00$899.00
$529.99$529.99
$259.00$259.00

position

ros start
racing, autopilot
omnidirectional, ros advanced
flagship
mobile crawl
robotic arm with camera
starter with jetson AI robot

chassis structure

medium pendulum suspension
ackerman chassis
medium pendulum suspension
large pendulum suspension
crawler chassis
/
crawler chassis

wheel

Non-slip rubber tires
racing rubber tires
Medium Mecanum Wheel
Large Mecanum Wheel
nylon track
/
nylon track

Motor specific speed

1:30
1:19
1:30
1:56
1:56
/
1:31

robotic arm with or no

no
no
no
6DOF robot arm
optional 3DOF robot arm
6DOF robot arm
no

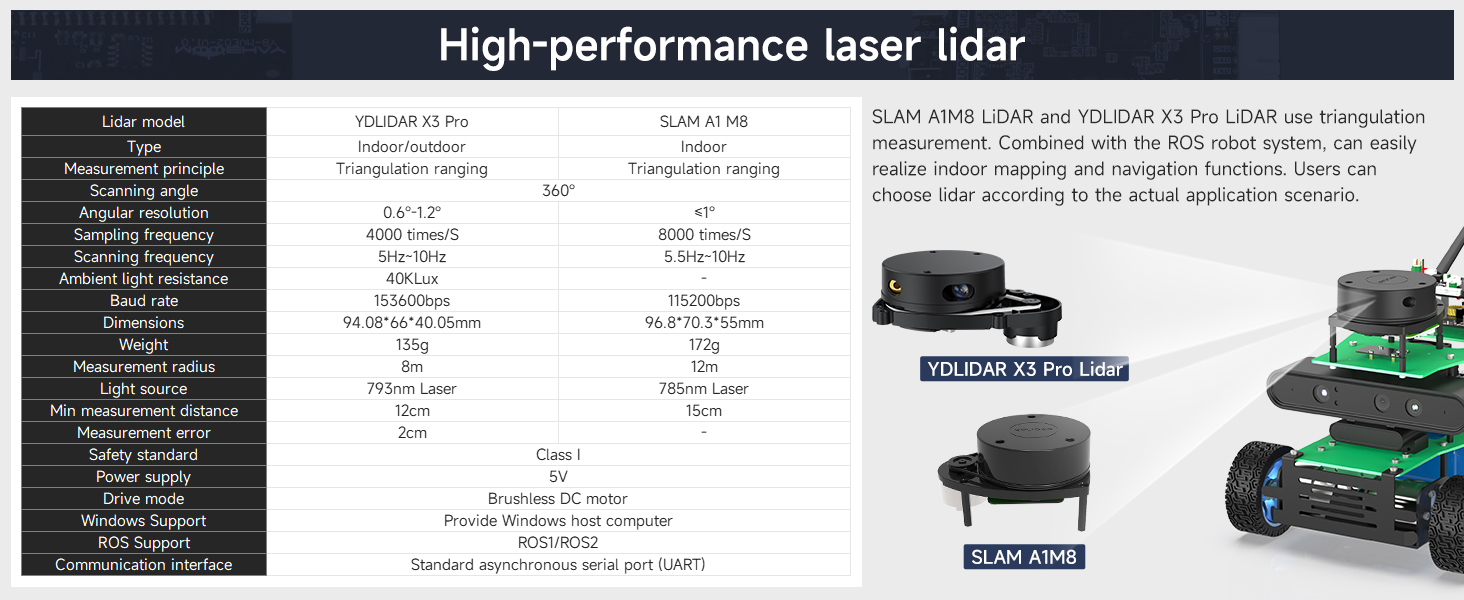

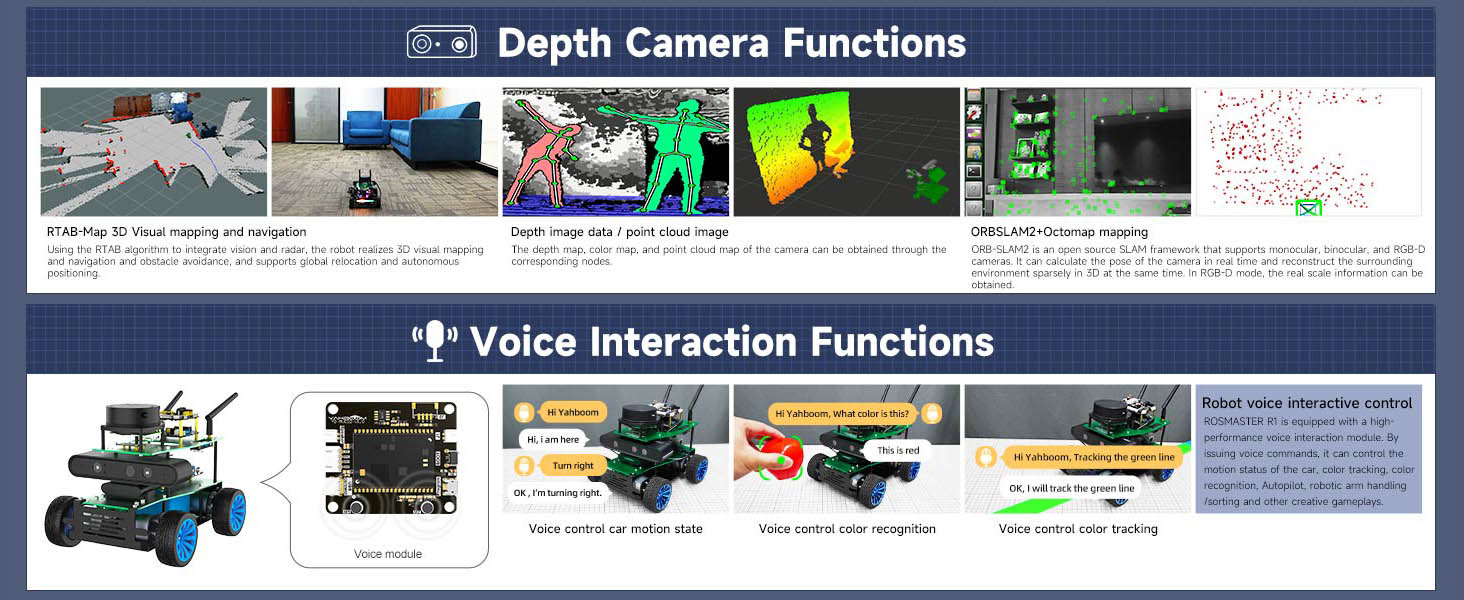

The multi-functional expansion board is matched with accessories such as radar, depth camera and voice module, which can realize various interesting ways of playing the robot. For example: path planning, radar obstacle avoidance and following, 3D visual mapping and navigation, AI visual recognition and tracking, multi-vehicle control, voice remote control and other technologically intelligent games

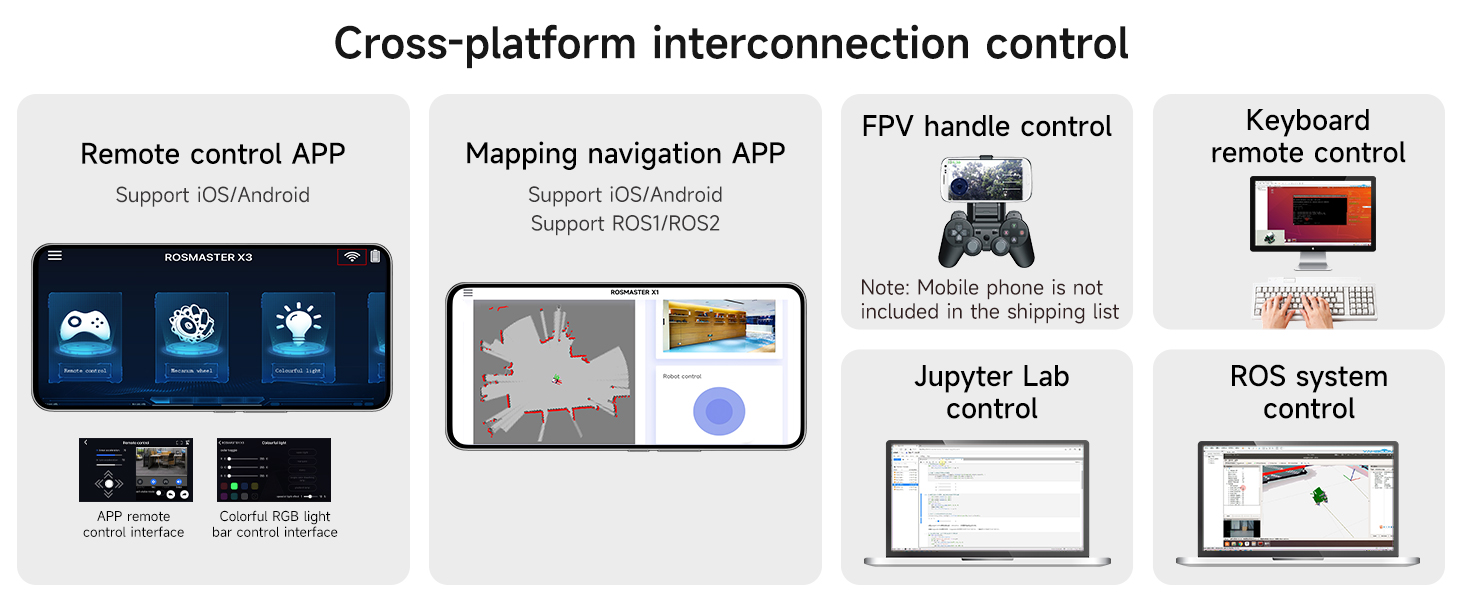

The rosmaster X1 robot has a variety of control methods. The remote control app can be used with the handle to achieve first-person perspective control, advanced and targeted mapping navigation app, computer-side PC-side control, Jupyter Lab programming control, and ROS system control methods. Learning to control your Robot car step by step is quite an accomplishment.
The adults programmable robot kit adopts the suspension chassis design, which can make the robot adapt to the uneven ground, ensure that the four wheels touch the ground at the same time, avoid the wheel suspension from slipping in the air, and affect the motor encoder recognition function.

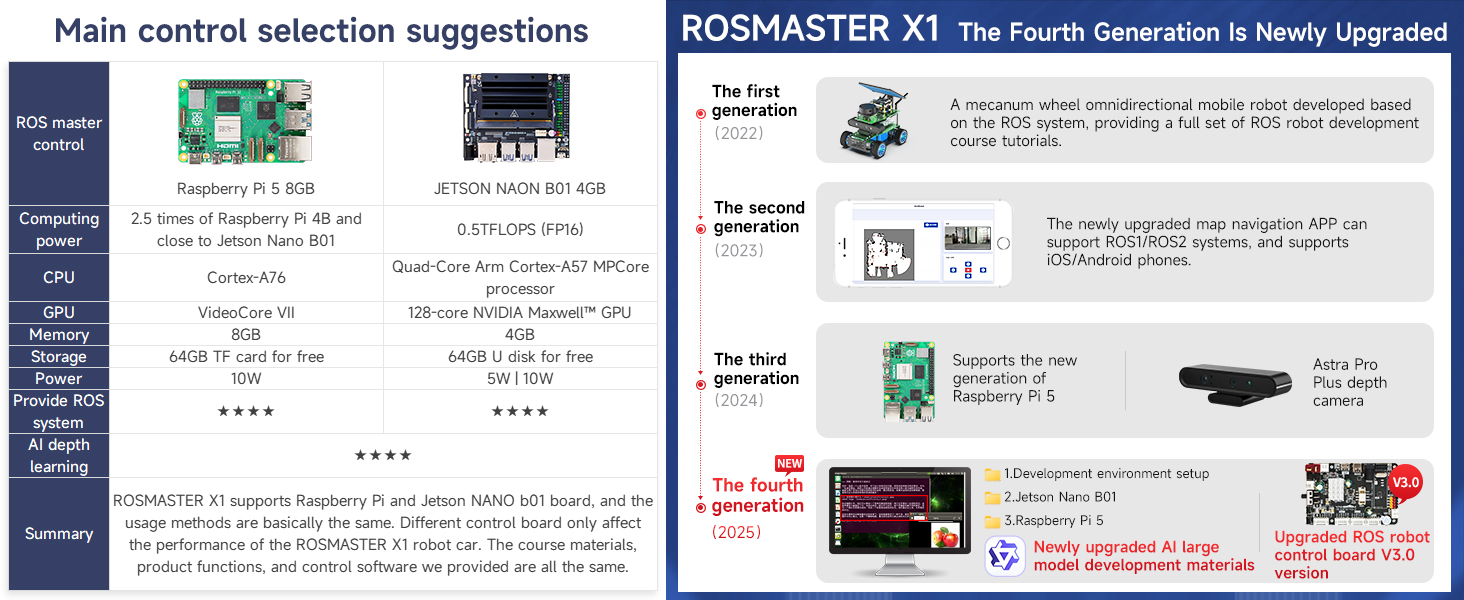

In order to meet the needs of different levels of users, Yahboom provides a variety of version options, please order according to the actual situation whether you need the version with the main control board (note: the robot cannot work without the development board), and the selection of accessories can refer to the detailed introduction

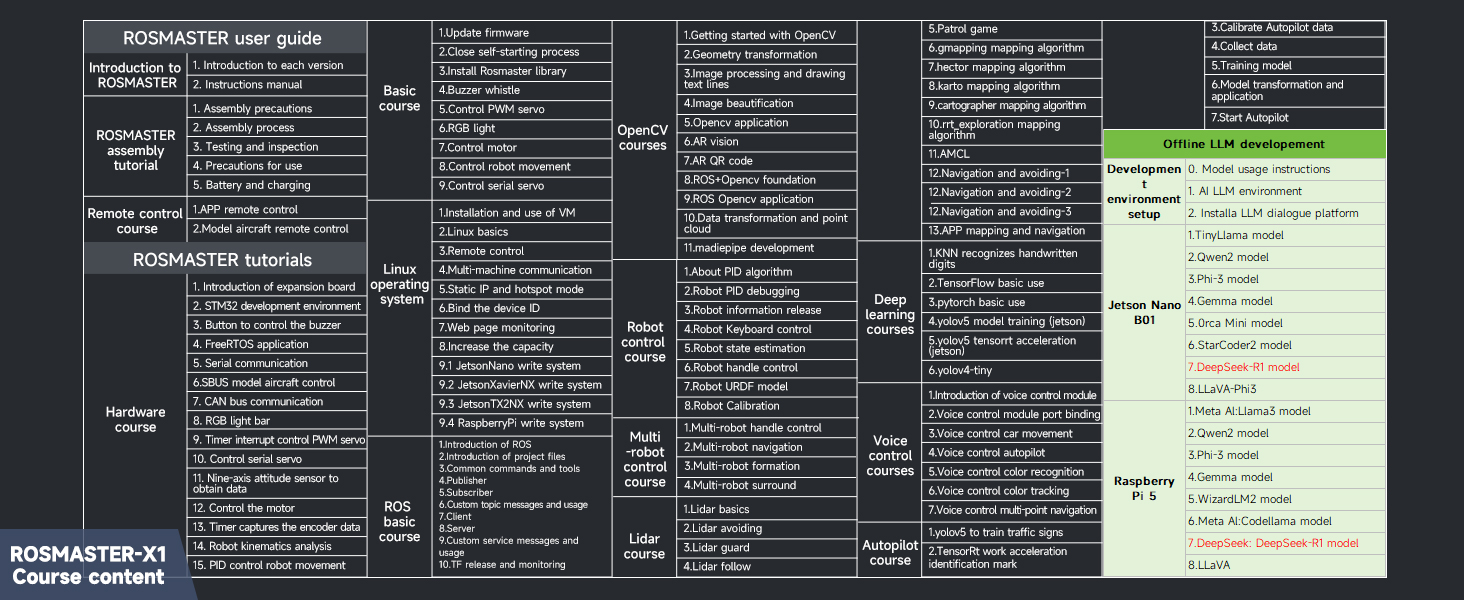

Yahboom provides product-specific courses (text and video), users can learn Python programming from installation to programming, from simple to penetration, and we provide technical support.
Rosmaster x1 is designed for DIY users with programming foundation, code science museum or school competition project, it is a good choice to use rosmaster x1 for extended learning.

Product Dimensions	1 x 1 x 1 inches
Item Weight	7.92 pounds
ASIN	B0BTDKSP3N
Item model number	rosmaster x1 X1 Basic Ver-without Nano
Manufacturer recommended age	18 years and up
Batteries	1 12V batteries required. (included)
Best Sellers Rank	#1,002,705 in Toys & Games (See Top 100 in Toys & Games) #1,246 in Remote- & App-Controlled Robots
Customer Reviews	1 rating 5.0 out of 5 stars
Manufacturer	Yahboom

Warranty & Support

Product Warranty: For warranty information about this product, please click here
